Titanium / Mullet / 170 mm

Ride outsidethe formula.

A titanium mullet hardtail designed around a 170 mm fork. Made for riders who want direct feedback, gravity-bike character, and a build that does not need general approval.

Join the waitlist See geometry

We are starting Unruled now. Frames are not ready to ship. Planned made-to-order lead time: at least 3 months after an order is confirmed.

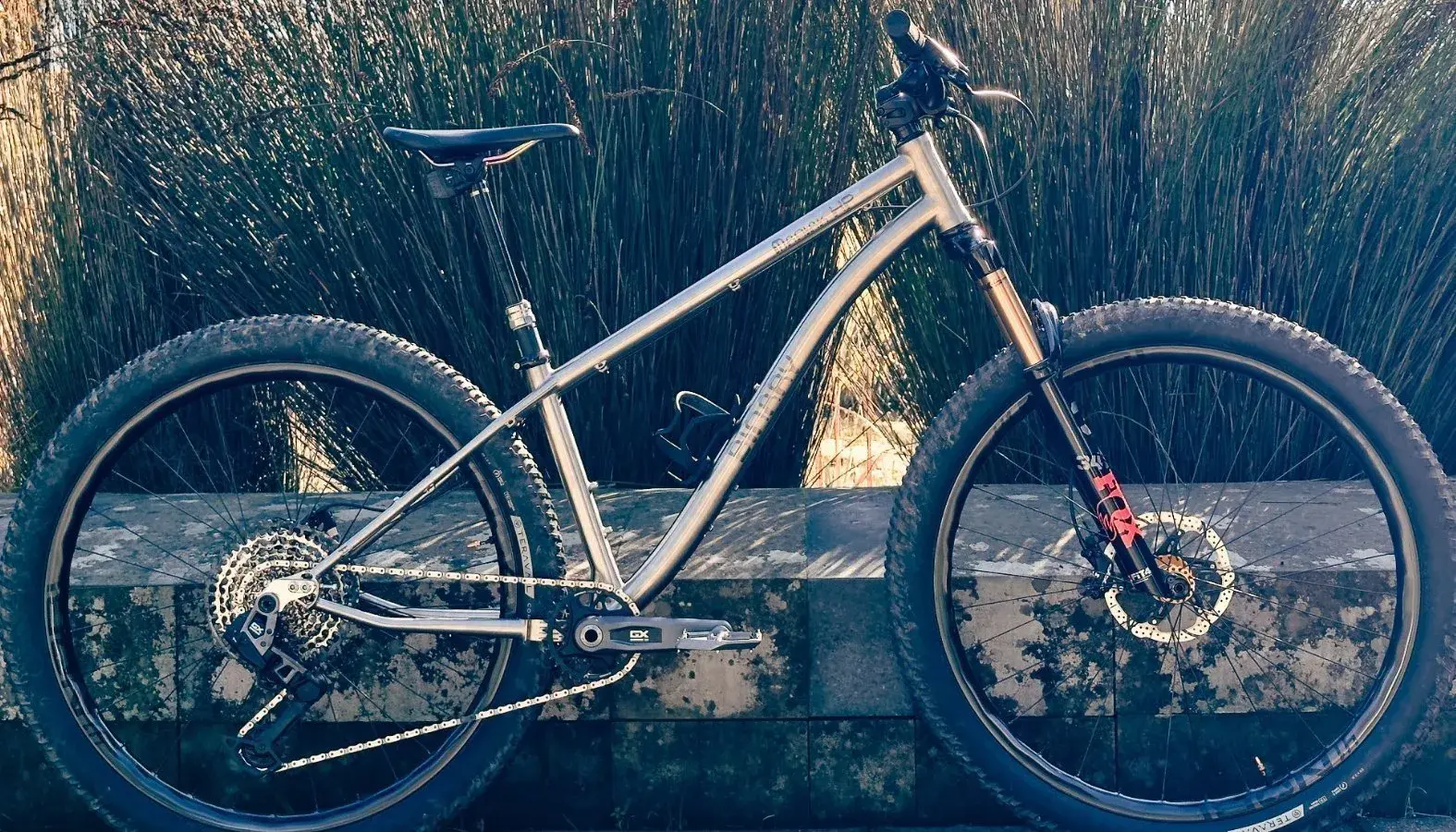

First frame / Development bike

Front29 × 2.5Rear27.5 × 2.6Fork170 mmSizesXS — XL

01 / About Unruled

Convention is a choice.Not a limit.

Why we are here

Mountain bikes do not have to be rational choices.

Unruled makes unconventional mountain bikes for riders who know the experience and character they want. We believe a bike can be direct, demanding, playful, and distinctive without asking for approval from the wider market.

We do not claim that one kind of bike is right for every rider. We create deliberate alternatives for riders who want something outside the accepted formula.

Development and launch

Prototypes are already being tested.

Before production starts, we must confirm that riders are willing to pay for this frame. We must also establish repeatable production, global delivery, service, and warranty systems. If demand supports the launch, each frame will be made to order with an expected lead time of at least three months.

Current stagePrototype testing + demand validation

Planned modelMade to order

Expected lead time3+ months

The first frame, from every angle.

Temporary image study / Production photography follows

02 / Frame details

Long-travel gravity character.Hardtail feedback.

The planned launch range carries the same mixed-wheel, 170 mm hardtail concept from XS through XL. Reach, stack, seat tube, front center, and rear center change with size.

These are the planned launch geometry targets. Final production release still depends on size-specific fit, clearance, manufacturing, and validation checks. We will publish changes before opening orders.

Geometry

Static / Millimetres / Degrees

Scroll sideways to see all values →

Measurement	XS	S	MS	M	ML	L	XL
Reach	395	410	425	440	455	475	495
Stack	654	660	666	674	680	686	694
Seat tube	330	345	358	370	385	405	425
Top tube	564.1	580.7	597.2	614.3	630.9	652.4	674.5
Head tube	107.6	114.3	121.0	130.0	136.7	143.5	152.4
HTA	63°	63°	63°	63°	63°	63°	63°
STA	75.5°	75.5°	75.5°	75.5°	75.5°	75.5°	75.5°
Front center	752.0	770.0	788.0	807.0	825.0	848.0	872.1
Rear center	421.2	431.3	441.4	452.0	462.1	475.0	488.4
Wheelbase	1169.5	1197.7	1225.8	1255.6	1283.8	1319.8	1357.4

Geometry basis: 29 × 2.5 front, 27.5 × 2.6 rear, 170 mm fork, approximately 583.5 mm axial axle-to-crown, 44 mm offset, and approximately 319.7 mm nominal BB height.

Front center and rear center are direct axle distances. Wheelbase is horizontal. Installed tires, fork setup, sag, rider mass, braking, and terrain change the bike's dynamic geometry.

FrameTitanium

Wheel format29 / 27.5

Fork basis170 / 44 offset

Rear spacing148 × 12 / UDH

HeadsetZS56 / ZS56

Bottom bracketT47 × 86.5

Seatpost31.6

Rear brake180 post mount

Chain guideISCG05

SizesXS / S / MS / M / ML / L / XL

03 / Register interest

Help decide if we build it.

We are looking for a small number of riders who genuinely want this kind of hardtail. Join the waitlist to register your size, location, and interest. This is not an order or deposit.

Waitlist members will receive development updates and notice before ordering opens. Planned production lead time is at least three months after a future order is confirmed.
